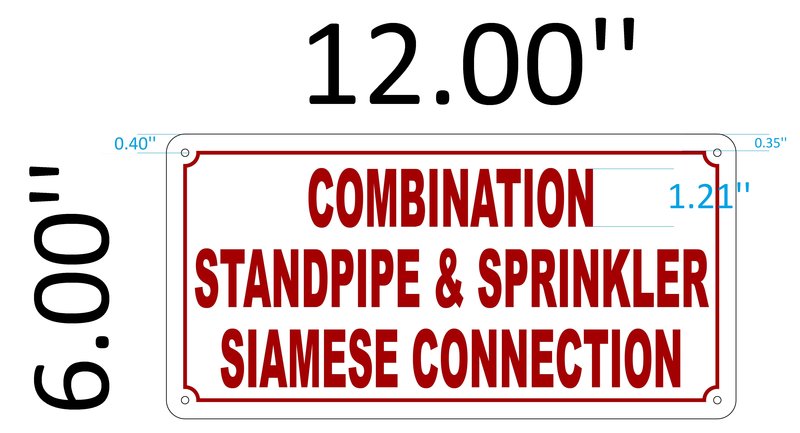

Size 6 inch x 12 inch
Sign has mounting holes in each corner.
Sign Thickness 0.02''
Sign letters color: RED
Sign background color: WHITE
Sign material: Aluminium
Sign Type: Wall Mounted
Reflective Sign: Yes
0.02'' rustproof aluminum
Standard Engineer Grade reflective
Rounded corners for easy handling and a professional appearance
Sign has pre-punched holes to insure a hassle-free installation
HPD Required sign: NO (See Law and regulations)
DOB NYC Required sign: NO (See Law and regulations)
Fire Department required sign: YES (See Law and regulations)
REQUIRED SIGNS for RESTAURANTS & BARS - N/A (See Law and regulations)
DOT Required Sign: NO (See Law and regulations)
DSNY Required Sign: NO (See Law and regulations)

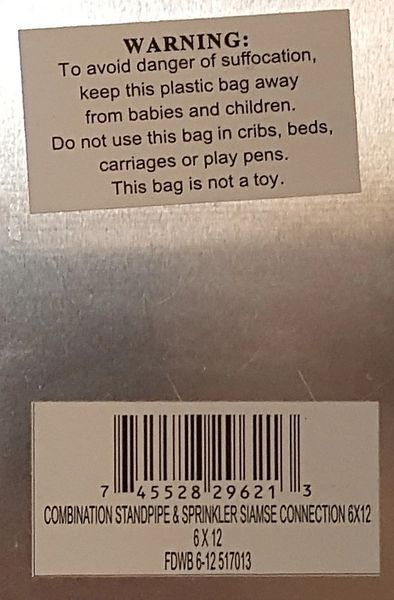

SKU: MDL NYC HMC NYC FDWB 6-12 517013
Sign Group: Fire Department Sign, FDC Signs, CSSSC Signs, Combination Signs, Standpipe Identification Signs, Sprinkler Signs, Sprinkler Identification Signs, Connection Signs

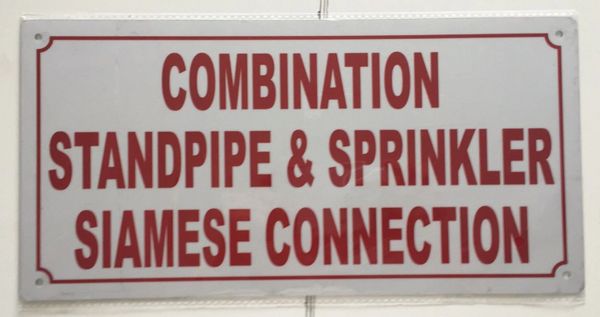

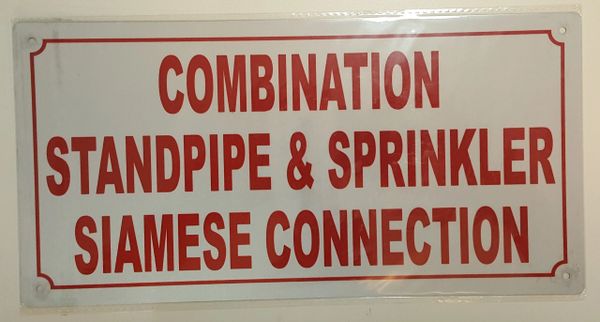

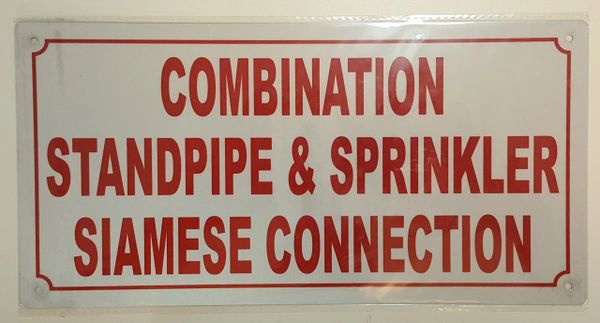

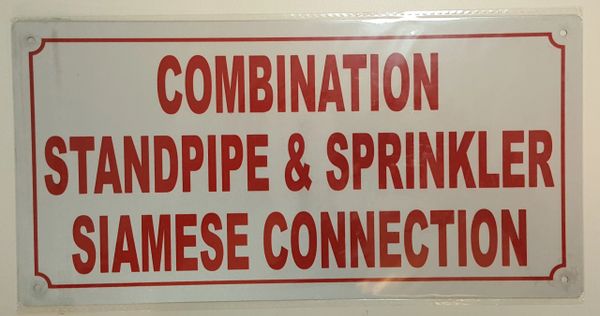

This is a reflective aluminum “COMBINATION STANDPIPE AND SPRINKLER SIAMESE CONNECTION” SIGN with holes for installation.Use/post sign to label COMBINATION STANDPIPE & SPRINKLER SIAMESE CONNECTION and inform in multi unit facility with reflective sign

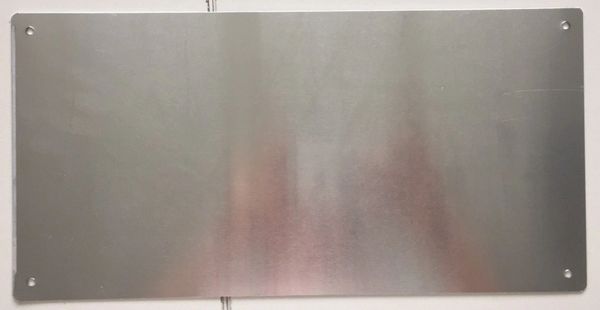

Our COMBINATION STANDPIPE AND SPRINKLER SIAMESE CONNECTION reflective signage comes with four pre-drill holes, which allow you to either use screws and install aluminum sign on walls behind relevant equipment or use Jack Chain/Sturdy Wire and install sign on the equipment it refers to, in which case you can simply hang it where it belongs.
Install a COMBINATION STANDPIPE AND SPRINKLER SIAMESE CONNECTION reflective aluminum sign to stay compliant with the relevant laws, regulations and recommendations in force in NYC. Maintain the safety levels required by different federal and municipal agencies and institutions that observe and enforce the law.

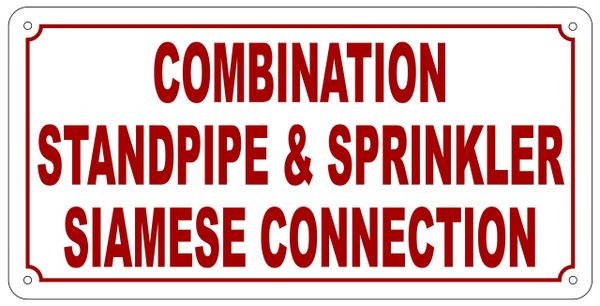

This is a sturdy COMBINATION STANDPIPE AND SPRINKLER SIAMESE CONNECTION reflective aluminum sign with WHITE background, RED letters and 4 holes for heavy duty installation. It is a size 6X12 aluminum reflective sign. It is 0.02 inches thick. It is a sign made of sturdy aluminum.
What is a standpipe system used for?
Automatic Dry Standpipe system is only designed to have water in the systempiping when the system is in use. Manual Dry Standpipe system are exclusively for fire department use and require a fire department pumper to supply the need pressure and water supply through a fire department connection.Standpipe systems are designed to provide fire protection water for hose lines in strategically placed locations inside a building or structure. Some older buildings only have standpipe systems while many newer buildings will have a combination system, which supplies the fire sprinkler system and the standpipe system
What is the purpose of a standpipe system?
A Standpipe is a type of rigid water piping which is built into multi-story buildings in a vertical position, to which fire hoses can be connected, allowing manual application of water to the fire. Within buildings standpipes thus serve the same purpose as fire hydrants.
What is the advantage of a dry standpipe system?
A "wet" standpipe is filled with water and is pressurized at all times. In contrast todry standpipes, which can be used only by firefighters, wet standpipes can be used by building occupants. Wet standpipes generally already come with hoses so that building occupants may fight fires quickly
Are standpipes required?
(Generally speaking, most buildings over 10,000 square feet must be fully sprinkled.) In summary, if a building is required to be equipped with a fully automatic sprinkler system, and it is more than 30 feet from surrounding grade to the highest or lowest story, a Class I standpipe system is likely required.
Why is it called a standpipe?
Standpipe may refer to: Standpipe (firefighting), a rigid vertical or horizontal pipe to which fire hoses can be connected. ... Standpipe water towers, used in the late 19th century. Standpipe (plumbing), a vertical pipe attached to a p-trap for rapid high-volume wastewater drainage such as from washing machines.
How many classes of standpipe systems are there?
The Three Types of Standpipe Systems. Class I Systems [2-1/2" (64mm) hose connections] are provided for use by fire departments and those trained in handling heavy water streams.
What is a standpipe drain?
The proper way to drain a washing machine isn't to hook the hose over the edge of a utility sink, as many homeowners do, but to install a standpipe and secure it to the wall framing. A standpipe is a vertical length of 2-inch drain pipe connected to a P-trap which is in turn connected to a drain
How many basic types of standpipe systems are there?
The specific type of system is based on the occupancy classification and building height. Standpipes have three major classifications: Class I standpipes serve a 2.5-inch fire hose connection for fire department use.
What is a Class 1 standpipe?
Class II standpipes are intended to be used by the occupants of the building, like fire extinguishers, and are equipped with a valve and 1.5-inch hose connection at each location. ... Class III standpipes are a combination of Classes I and II, using both sizes of hose connections and Class I water supply requirements.
What is a standpipe valve?
Firefighters need reliable supplies of water to effectively extinguish fires. ... Code requirements were enacted, and the use of standpipe systems – a series of pipe designed to provide water for hose lines in strategic locations within a structure – and their outlets, the fire department angle hose valve, were mandated.
What is a combination standpipe?
A combined system consists both of sprinkler piping and is a standpipe for the building. Combined systems are the usual choice by building owners and contractors because their dual purpose is sensible, safe, and economical.
What is the pressure requirement & flow requirement of standpipe & sprinklers?
The minimum pressure while flowing the required standpipe flow (500 gpm from the hydraulically most remote standpipe and 250 gpm from each additional standpipe, up to a maximum of 1000 gpm for a fully sprinklered building) shall be 75 psi at any valve outlet while flowing 250 gpm through each valve
What is a standpipe test?
A standpipe is the vertical piping that connects fire sprinkler systems and hose stations between multiple floors. It is common to see standpipes in stairwells of high-rise buildings. A rooftop standpipe test verifies the water supply, pump and piping at the topmost part of the system.
How does a standpipe work?
In North America, a standpipe is a type of rigid water piping which is built into multi-story buildings in a vertical position or bridges in a horizontal position, to which fire hoses can be connected, allowing manual application of water to the fire.
Fire Sprinkler Signs- The signs are designed to identify different controls and pipes for fire sprinkler systems in your facility. A fire sprinkler or sprinkler head is the component of a fire sprinkler system that discharges water when the effects of a fire have been detected. Many states require owners to install clear signs identifying the different types of fire sprinklers used.
There are various types of fire systems. 4 of them are described below:
Dry Pipe Sprinkler system-Dry pipe sprinklers are similar to pre-action systems as they use pressurized air in the pipe which exits before water escapes. This causes a minute delay in water discharge but is ideal for buildings with low temperatures so the pipes do not freeze. These fire sprinkler systems have a fast opening tool to get rid of the air and speed up the flow of water. Warehouses located in the north are a good example of what buildings should use dry pipe sprinklers.
Wet Pipe Sprinkler system-Wet pipe fire sprinklers constantly have water in them. This allows for a quick reaction to a fire and is the most common type of sprinkler installed in buildings. A type of building that uses the wet pipe system is a high-rise or office building with a few floors. This fire sprinkler system is cost efficient and low maintenance.
Pre-action fire sprinkler system-Pre-action fire sprinkler systems are filled with air and water is allowed to pass through when the smoke alarm or detector goes off. This type of system requires two triggers to start water flow. It helps greatly that the pre-action fire sprinkler can be set to prevent water from spouting in case of a false alarm or a mechanical failure. The pre-action system is good for use in places where the sprinklers are only necessary when there is an actual fire so other items in the building do not get water damage from an accidental sprinkling. Such buildings include libraries and data centers. These places contain items of high value like electronics and goods damageable by water such as books
Deluge Fire Sprinkler -These types of fire sprinkler systems also need a smoke or heat detector like the pre-action system. A deluge system has open nozzles that can be used when a hazard is present. When flammable liquids are spread across a floor, deluge fire sprinklers are good to have. In that case, buildings such as industrial parks and buildings with many tanks have deluge fire sprinkler systems installed.
Frequently asked questions about Siamese signage and how the Siamese work:
How does a Siamese fire connection work? A Siamese connection or splitter in fire protection engineering is a pipe fitting that allows two or more fire hoses to be connected to a single standpipe riser at the same general location. It is called so due to the visual similarity to Siamese twins
What is the purpose of Siamese connections? The Fire Department Connection, also commonly known as the Siamese connection, is an important component found on most sprinkler and standpipe systems. When a fire sprinkler system activates, the FDC provides a means for firefighters to connect hose lines to supplement the fire sprinkler system's domestic water supply
Siamese connections is a fire department connection. One can find a fire department connection in many high rise building and new constructions. Those are pipes in front of buildings painted red, green, and yellow and look like fire hydrants. They are used by the fire department crew to fight fires.
Shipping and Handling Cost:
Our Shipping is fixed whether you buy 1 item or 20 items (We ship within USA only) - do not miss this opportunity to buy all signs needed at no additional shipping cost.
We are required to collect sales tax on any product sold on this site and shipped to an address in New York. The sales tax is 8.875 percent.
The requirements for
sign content are determined by intended use and by applicable
regulation. The BUYER is responsible for determining the appropriate
content for a sign or package of signs. DOBsigns.nyc makes no warranty or
representation of suitability of a sign for any specific application. IT IS THE
CUSTOMER'S RESPONSIBILITY TO ENSURE THAT THE SIGNS THE CUSTOMER ORDERS ARE IN
COMPLIANCE WITH ALL STATE, FEDERAL, LOCAL, AND MUNICIPAL LAWS. Please
review terms and conditions prior to purchase.
We provide both signs required by city and state regulation and Fire Department Sign , FDC Signs , CSSSC Signs , Combination Signs , Standpipe Identification Signs , Sprinkler Signs , Sprinkler Identification Signs and Connection Signs
For more information about what is required, see the laws that are referenced and the rules applicable to your city and state. This page is for informational purposes only and is not intended as legal advice, professional advice or a statement of law. You may wish to consult with an attorney.
Find us on:
THE OFFICIAL DOB SIGN NYC – DOBsigns.NYC will provide you with all DOB required signs, NYC Building required signs, HPD required signs and NYC Fire Department and Department of Transportation (DOT) signage. We offer a wide range of construction job site signs made mandatory by NYC building department. We are the biggest provider of building and management signsand COMBINATION STANDPIPE AND SPRINKLER SIAMESE CONNECTION SIGNs, as well as signs that one can post/use to label COMBINATION STANDPIPE & SPRINKLER SIAMESE CONNECTION and inform in multi unit facility with reflective sign
This COMBINATION STANDPIPE AND SPRINKLER SIAMESE CONNECTION sign is a type of reflective aluminum sign with WHITE background, RED letters and 4 holes for heavy duty installation. It is a size 6X12 aluminum reflective sign that is 0.02 inches thick. It is a sign made of sturdy aluminum.
