FDC AUTO SPRINKLER SIGN (REFLECTIVE ALUMINUM SIGNS 10 X 12)

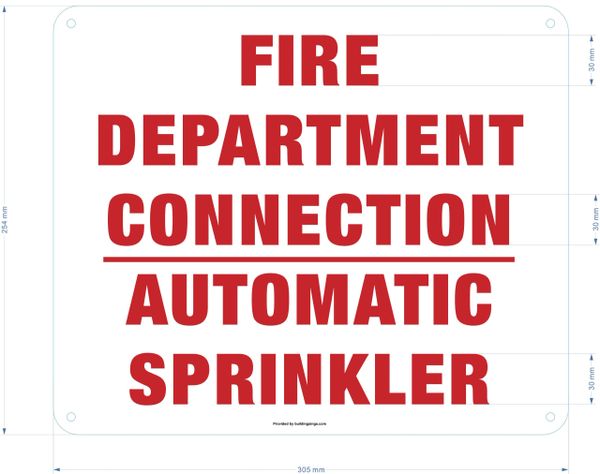

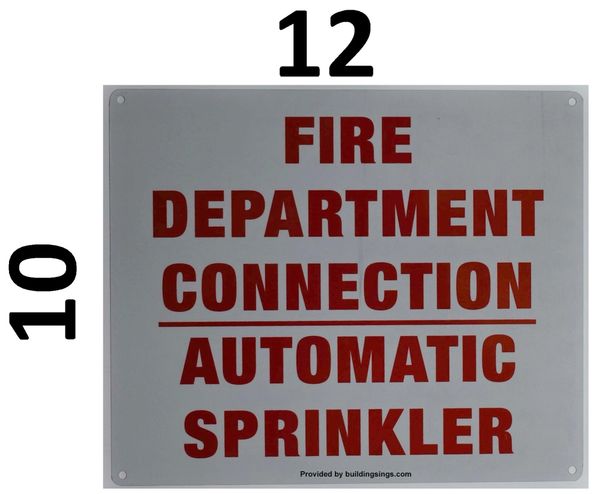

Size 10 inch x 12 inch

Sign has mounting holes in each corner.

Sign Thickness 0.02''

Sign letters color: RED

Sign background color: WHITE

Sign material: Aluminium

Sign Type: Wall Mounted

HPD Required sign: NO (See Law and regulations)

DOB NYC Required sign: NO (See Law and regulations)

Fire Department required sign: YES (See Law and regulations)

REQUIRED SIGNS for RESTAURANTS & BARS - N/A (See Law and regulations)

DOT Required Sign: NO (See Law and regulations)

DSNY Required Sign: NO (See Law and regulations)

Sign Group: Fire Department Signs, Fire Department Automatic Sprinkler Connection Signs, Sprinkler FDC Signs, Sprinkler Signs, Sprinkler Fire Department Connection Signs, Automatic Sprinkler Signs, FDC Sprinkler Automatic Signs

Automatic Sprinkler

An Automatic sprinkler activate itself in event of fire When one or more of the automatic sprinkler heads is triggered and water will discharge. Wet sprinkler systems are the most common type of sprinkler system installed. A wet pipe system has water in the pipes in the ambient or normal condition and has heat responsive elements on all sprinklers. Thus, water is instantaneously discharged from a sprinkler when it actuates.

Why do we need a sign FDC in the building ?

The FDC ( Fire department connection sign) is a sign that help the fire department to quickly find the FDC to connect to the fire pump truck  and this connection allows the fire department to supplement the fire protection system in the event of a fire.

What is FDC ?

The Fire Department Connection (FDC), also known as the Siamese Connection, is an important component found on most sprinkler and standpipe systems. When a sprinkler system activates, the fire department connects hose lines from a pumper truck to the fire department connection. This connection allows the fire department to supplement the fire protection system in the event of a fire.

Fire Sprinkler Signs- The signs are designed to identify different controls and pipes for fire sprinkler systems in your facility. A fire sprinkler or sprinkler head is the component of a fire sprinkler system that discharges water when the effects of a fire have been detected. Many states require owners to install clear signs identifying the different types of fire sprinklers used.

There are various types of fire systems. 4 of them are described below:

Dry Pipe Sprinkler system-Dry pipe sprinklers are similar to pre-action systems as they use pressurized air in the pipe which exits before water escapes. This causes a minute delay in water discharge but is ideal for buildings with low temperatures so the pipes do not freeze. These fire sprinkler systems have a fast opening tool to get rid of the air and speed up the flow of water. Warehouses located in the north are a good example of what buildings should use dry pipe sprinklers.

Wet Pipe Sprinkler system-Wet pipe fire sprinklers constantly have water in them. This allows for a quick reaction to a fire and is the most common type of sprinkler installed in buildings. A type of building that uses the wet pipe system is a high-rise or office building with a few floors. This fire sprinkler system is cost efficient and low maintenance.

Pre-action fire sprinkler system-Pre-action fire sprinkler systems are filled with air and water is allowed to pass through when the smoke alarm or detector goes off. This type of system requires two triggers to start water flow. It helps greatly that the pre-action fire sprinkler can be set to prevent water from spouting in case of a false alarm or a mechanical failure. The pre-action system is good for use in places where the sprinklers are only necessary when there is an actual fire so other items in the building do not get water damage from an accidental sprinkling. Such buildings include libraries and data centers. These places contain items of high value like electronics and goods damageable by water such as books

Deluge Fire Sprinkler -These types of fire sprinkler systems also need a smoke or heat detector like the pre-action system. A deluge system has open nozzles that can be used when a hazard is present. When flammable liquids are spread across a floor, deluge fire sprinklers are good to have. In that case, buildings such as industrial parks and buildings with many tanks have deluge fire sprinkler systems installed.

Automatic sprinkler signs – the signs are designed to inform 1st respondents of the sprinkler system at hand. Automatic Fire Sprinkler Systems present a network of water-filled pipes which starts at domestic water service lines and ends with strategically spaced fire sprinkler heads located throughout pertinent building.

Shipping and Handling Cost:

Our Shipping is fixed whether you buy 1 item or 20 items (We ship within USA only) - do not miss this opportunity to buy all signs needed at no additional shipping cost.

Sales Tax:

We are required to collect sales tax on any product sold on this site and shipped to an address in New York. The sales tax is 8.875 percent.

Notice:

The requirements for sign content are determined by intended use and by applicable regulation. The BUYER is responsible for determining the appropriate content for a sign or package of signs. DOBsigns.nyc makes no warranty or representation of suitability of a sign for any specific application. IT IS THE CUSTOMER'S RESPONSIBILITY TO ENSURE THAT THE SIGNS THE CUSTOMER ORDERS ARE IN COMPLIANCE WITH ALL STATE, FEDERAL, LOCAL, AND MUNICIPAL LAWS. Please review terms and conditions prior to purchase.

We provide both signs required by city and state regulation and Fire Department Signs , Automatic Sprinkler FDC Signs , Sprinkler FDC Signs , Sprinkler Signs , Auto Sprinkler FDC Signs , and Sprinkler Fire Department Connection Signs

For more information about what is required, see the laws that are referenced and the rules applicable to your city and state. This page is for informational purposes only and is not intended as legal advice, professional advice or a statement of law. You may wish to consult with an attorney.

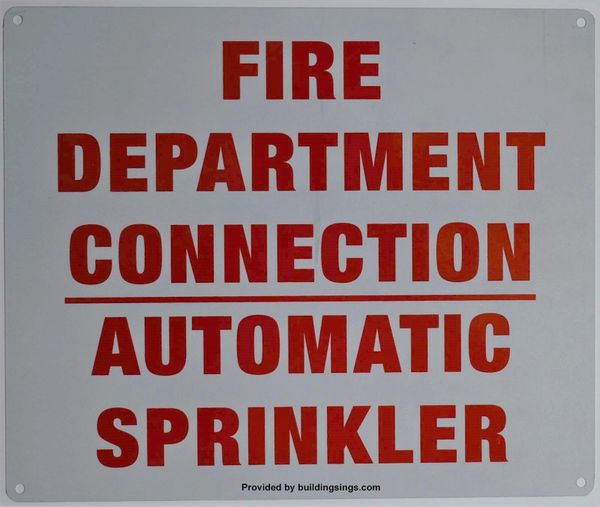

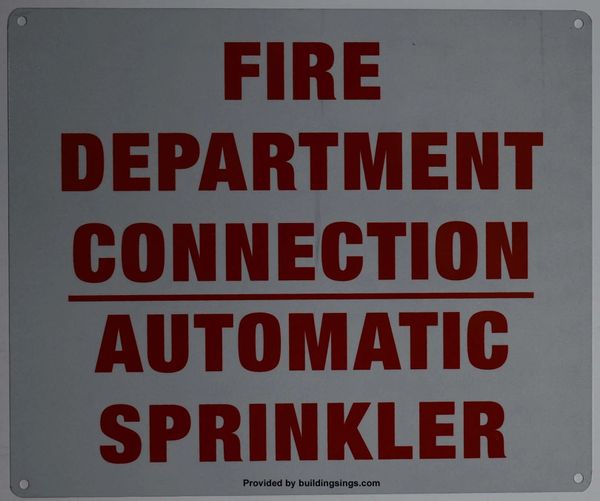

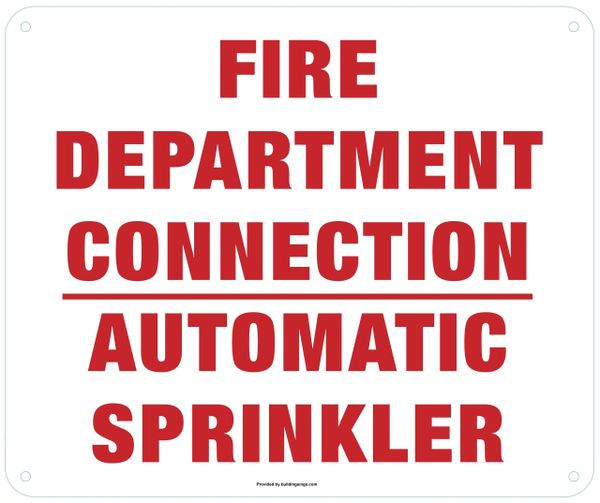

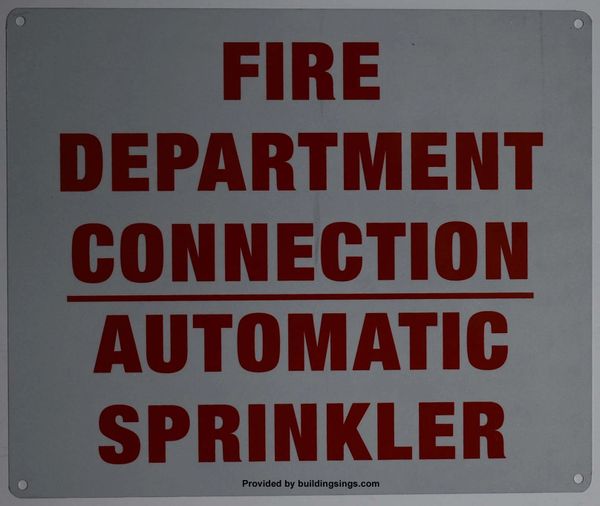

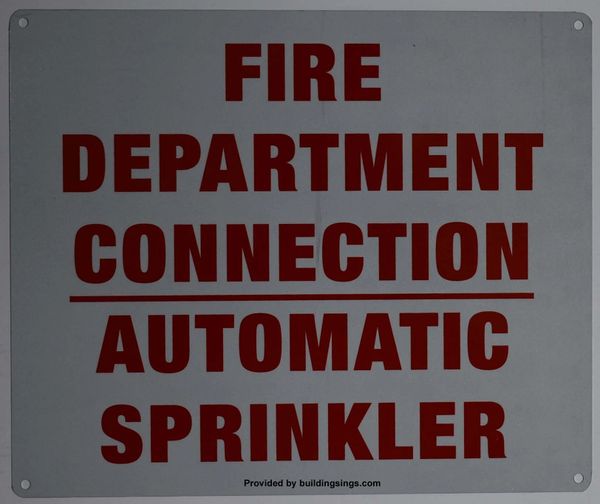

This is an aluminum “FIRE DEPARTMENT CONNECTION AUTOMATIC SPRINKLER” SIGN with holes for installation. In NYC use/ post sign to inform tenants/owners/guests/officers/Fire Department Crew of designated sprinkler FDC in facility with proper HPD designation and aluminum signs
