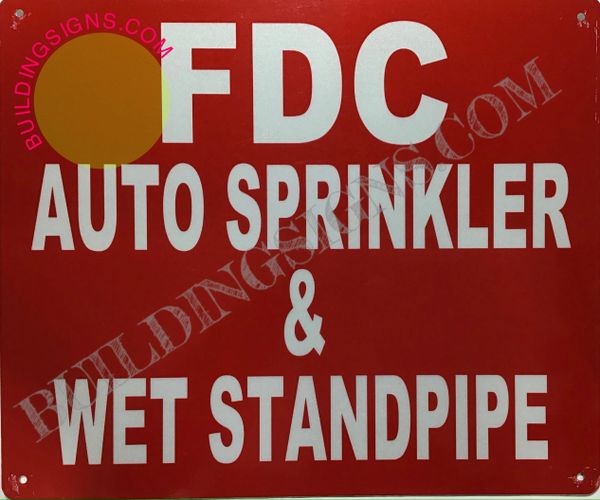

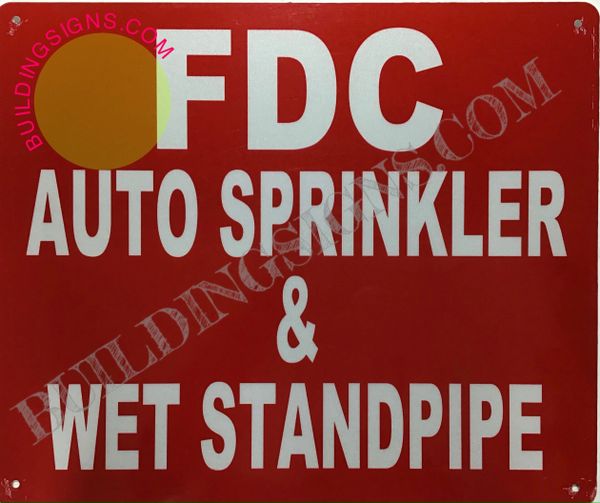

• FDC AUTO SPRINKLER AND WET STANDPIPE SIGN- RED (ALUMINUM SIGNS 10X12)

    $10.99
    Free Shipping!

    FDC AUTO SPRINKLER AND WET STANDPIPE SIGN (REFLECTIVE ALUMINUM SIGNS 10 X 12)

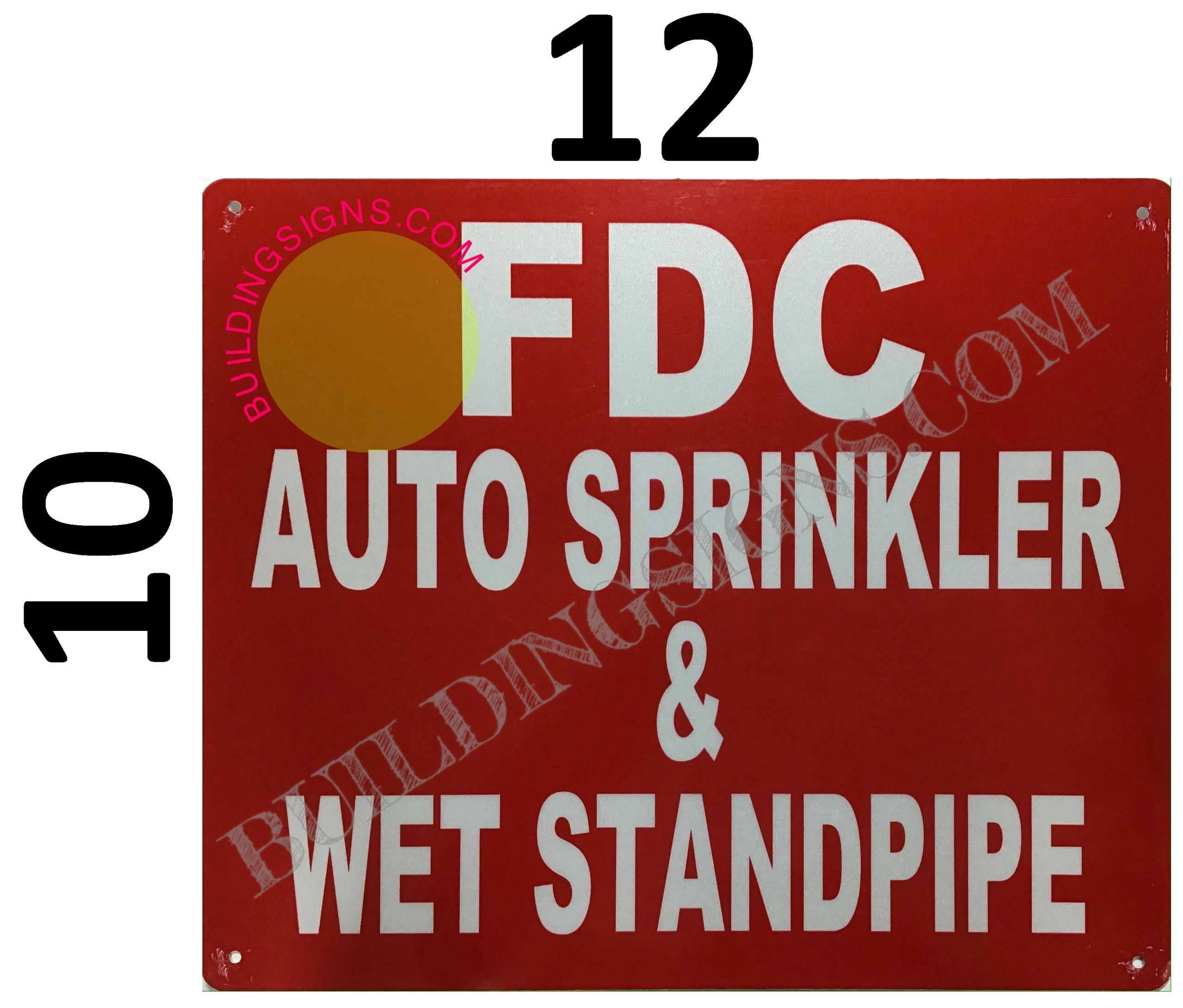

    Size 10 inch x 12 inch

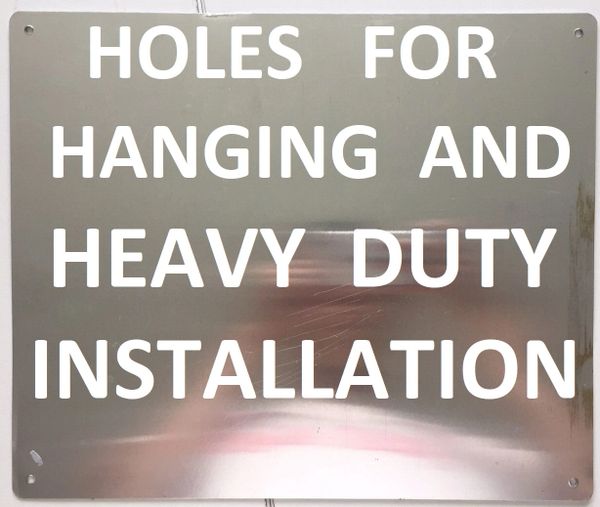

    Sign has mounting holes in each corner.

    Sign Thickness 0.02''

    Sign letters color: WHITE

    Sign background color: RED

    Sign material: Aluminium

    Sign Type: Wall Mounted

    HPD Required sign: NO (See Law and regulations)

    DOB NYC Required sign: NO (See Law and regulations)

    Fire Department required sign: YES (See Law and regulations)

    REQUIRED SIGNS for RESTAURANTS & BARS - N/A (See Law and regulations)

    DOT Required Sign: NO (See Law and regulations)

    DSNY Required Sign: NO (See Law and regulations)


    Sign Group: Fire Department Signs, Fire Department Automatic Sprinkler Connection Signs, FIRE DEPARTMENT CONNECTION AUTOMATIC SPRINKLER AND WET STANDPIPE SIGNS, Sprinkler FDC Signs, Sprinkler Signs, Sprinkler Fire Department Connection Signs, Automatic Sprinkler Signs, FDC Sprinkler Automatic Signs


    Automatic Sprinkler

    An Automatic sprinkler activate itself in event of fire When one or more of the automatic sprinkler heads is triggered and water will discharge. Wet sprinkler systems are the most common type of sprinkler system installed. A wet pipe system has water in the pipes in the ambient or normal condition and has heat responsive elements on all sprinklers. Thus, water is instantaneously discharged from a sprinkler when it actuates.


    This sign Fire department connection is design to notify the emergency respond unit the location of the Fire department connection (FDC) in the building and type of connection to the  building


    Why do we need a sign FDC in the building ?

    The FDC ( Fire department connection sign) is a sign that help the fire department to quickly find the FDC to connect to the fire pump truck  and this connection allows the fire department to supplement the fire protection system in the event of a fire.



    What is FDC ?

    The Fire Department Connection (FDC), also known as the Siamese Connection, is an important component found on most sprinkler and standpipe systems. When a sprinkler system activates, the fire department connects hose lines from a pumper truck to the fire department connection. This connection allows the fire department to supplement the fire protection system in the event of a fire.



    Fire Sprinkler Signs- The signs are designed to identify different controls and pipes for fire sprinkler systems in your facility. A fire sprinkler or sprinkler head is the component of a fire sprinkler system that discharges water when the effects of a fire have been detected. Many states require owners to install clear signs identifying the different types of fire sprinklers used.

    There are various types of fire systems. 4 of them are described below:

    Dry Pipe Sprinkler system-Dry pipe sprinklers are similar to pre-action systems as they use pressurized air in the pipe which exits before water escapes. This causes a minute delay in water discharge but is ideal for buildings with low temperatures so the pipes do not freeze. These fire sprinkler systems have a fast opening tool to get rid of the air and speed up the flow of water. Warehouses located in the north are a good example of what buildings should use dry pipe sprinklers.

    Wet Pipe Sprinkler system-Wet pipe fire sprinklers constantly have water in them. This allows for a quick reaction to a fire and is the most common type of sprinkler installed in buildings. A type of building that uses the wet pipe system is a high-rise or office building with a few floors. This fire sprinkler system is cost efficient and low maintenance.

    Pre-action fire sprinkler system-Pre-action fire sprinkler systems are filled with air and water is allowed to pass through when the smoke alarm or detector goes off. This type of system requires two triggers to start water flow. It helps greatly that the pre-action fire sprinkler can be set to prevent water from spouting in case of a false alarm or a mechanical failure. The pre-action system is good for use in places where the sprinklers are only necessary when there is an actual fire so other items in the building do not get water damage from an accidental sprinkling. Such buildings include libraries and data centers. These places contain items of high value like electronics and goods damageable by water such as books

    Deluge Fire Sprinkler -These types of fire sprinkler systems also need a smoke or heat detector like the pre-action system. A deluge system has open nozzles that can be used when a hazard is present. When flammable liquids are spread across a floor, deluge fire sprinklers are good to have. In that case, buildings such as industrial parks and buildings with many tanks have deluge fire sprinkler systems installed.


    Automatic sprinkler signs – the signs are designed to inform 1st respondents of the sprinkler system at hand. Automatic Fire Sprinkler Systems present a network of water-filled pipes which starts at domestic water service lines and ends with strategically spaced fire sprinkler heads located throughout pertinent building.


    What is an FDC? FDC is defined as Fire Department Connection. The fire department requires owners to put clear signs indicating where the FDC in the building is. Fdc signs need to be clear and easy to read with strong contrast between the letters and background.

    FDC SIGNS- FIRE DEPARTMENT CONNECTION SIGNS:

    FDC STANDS FOR FIRE DEPARTMENT CONNECTION. The FDC signs are designed to inform the 1st respondents of the location of the fire department connection in case of fire. The FDC is a connection on the exterior of a commercial building, where a responding fire department can attach a fire hose and pump water into the building's standpipe system supplementing the water pressure to the building's sprinkler system

    What is the purpose of FDC? The Fire Department Connection, also commonly known as the Siamese connection, is an important component found on most sprinkler and standpipe systems. When a fire sprinkler system activates, the FDC provides a means for firefighters to connect hose lines to supplement the fire sprinkler system's domestic water supply

    What is FDC sign and Fire Department Connection Sign compliancy?
    To be compliant with NFPA 14 owners are required to post FDC signs to mark standpipes and fire hose connections.

    What is the most common type of FDC connection?  One of the most common FDCs, known as a Siamese or two-way connection, has two 2 1/2-inch female swivel connections. NFPA requires that all fire department connections use 2 1/2" National Hose (NH) threaded female couplings unless the authority having jurisdiction designates another specific connection type


    Wet standpipe signs are designed to inform the fire department and maintainace teams of the type of fire sprinkler in the building. Wet Standpipe systems are wet at all times; Simple as efficient



    A "wet" standpipe is filled with water and is pressurized at all times. In contrast to dry standpipe systems, which can be used only by firefighters, wet standpipes can be used by building occupants as well. Usually wet standpipes feature hoses, that allow building occupants to launch quick fire attacks.



    Automatic wet standpipe system pipes have pressurized water at all times. When a hose outlet is opened, water immediately flows from them; Hence, the word “automatic”; Hence, their full not- complete reliance on firefighters supplying water and pressure to the system; Hence, their level of efficiency.



    What is the purpose of a standpipe?

    Standpipe systems present a series of pipes, which connect a water supply to hose connections; As extension of the fire hydrant system. They are designed to provide a pre-piped water system for building occupants or the fire department



    There are two main categories of standpipes

    1)     Wet

    2)     Dry.



    Wet systems are either automatic wet or manual wet. Automatic wet systems keep water in the standpipe system at all times and have a fire pump capable of providing the needed pressures. Manual wet systems keep water in the system at all times, but are not backed up by a pump. A combination of a manual wet standpipe and a sprinkler system may allow for sufficient pressure sprinkler supply without the use of a pump; Such a system however, may in fact need a relatively small pump to supply sprinklers properly; But will not adequately supply hose outlets.



    The fire department crew would have to supply the fire department connection (FDC) enough to ensure the needed level of pressure on its attack lines. Automatic systems are the most commonly found systems in high-rise buildings, but it is up to each department to perform pre-incident planning and building inspections to identify any abnormal systems. Automatic and semi-automatic dry systems keep air in the standpipe. Automatic systems keep air under pressure. If the standpipe outlet valve is opened, it opens a valve allowing water to fill the system. Semi-automatic systems present unpressurized air. Water is introduced via a dry pipe valve that must be activated manually. The two dry systems above have a permanent water supply. The manual dry system presents unpressurized air in the system and has no fire pump or water supply; Hence, in such a case it is mandatory for the FDC to be used before the launch of an efficient fire attack.


    Shipping and Handling Cost:

    Our Shipping is fixed whether you buy 1 item or 20 items (We ship within USA only) - do not miss this opportunity to buy all signs needed at no additional shipping cost.



    Sales Tax:

    We are required to collect sales tax on any product sold on this site and shipped to an address in New York. The sales tax is 8.875 percent.



    Notice:

    The requirements for sign content are determined by intended use and by applicable regulation. The BUYER is responsible for determining the appropriate content for a sign or package of signs. DOBsigns.nyc makes no warranty or representation of suitability of a sign for any specific application. IT IS THE CUSTOMER'S RESPONSIBILITY TO ENSURE THAT THE SIGNS THE CUSTOMER ORDERS ARE IN COMPLIANCE WITH ALL STATE, FEDERAL, LOCAL, AND MUNICIPAL LAWS. Please review terms and conditions prior to purchase.


    We provide both signs required by city and state regulation and Fire Department Signs , Automatic Sprinkler FDC Signs , Sprinkler FDC Signs , Sprinkler Signs , Auto Sprinkler FDC Signs , and Sprinkler Fire Department Connection Signs


    For more information about what is required, see the laws that are referenced and the rules applicable to your city and state. This page is for informational purposes only and is not intended as legal advice, professional advice or a statement of law. You may wish to consult with an attorney.



    THE OFFICIAL DOB SIGN NYC – DOBsigns.NYC will provide you with all DOB required signs, NYC Building required signs, HPD required signs and NYC Fire Department and Department of Transportation (DOT) signage. We offer a wide range of construction job site signs made mandatory by NYC building department. We are the biggest provider of building and management signs, aluminum signs to install in buildings with proper HPD designation, and Fire Department Signs, Reflective Signs, Auto Sprinkler Signs, Red Background Signs, Sprinkler FDC Signs, Sprinkler Signs, required building  signs, Sprinkler Fire Department Connection Signs, Automatic Sprinkler Signs, FDC Sprinkler Automatic Signs, as well as FDC AUTO SPRINKLER SIGNs, and signs that one can post/use to label Fire Department Connection & inform owner/tenant/officers of automatic sprinkler FIRE DEPARTMENT CONNECTION in facility with proper HPD designation




    This is an aluminum “FIRE DEPARTMENT CONNECTION AUTOMATIC SPRINKLER” SIGN with holes for installation. In NYC use/ post sign to inform tenants/owners/guests/officers/Fire Department Crew of designated sprinkler FDC in facility with proper HPD designation and aluminum signs
